Year 10+ Plane Geometry


Transformations

Transformations

There are four important geometric transformations. These are slides, flips, turns and enlargement, technically known as translation, reflection, rotation and dilation.

Slides, Flips and Turns

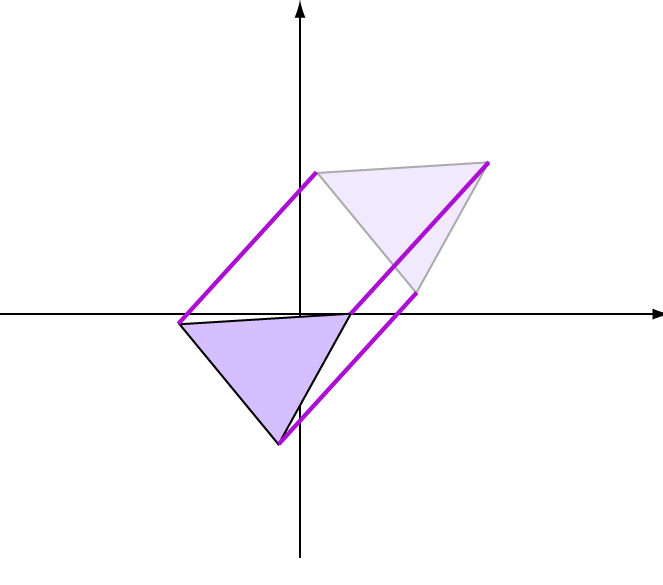

Slide: In this transformation, the object is pushed along (without changing the lengths of any of its lines or the directions they point in) to another place.

Transformations
The technical term for this transformation is translation.

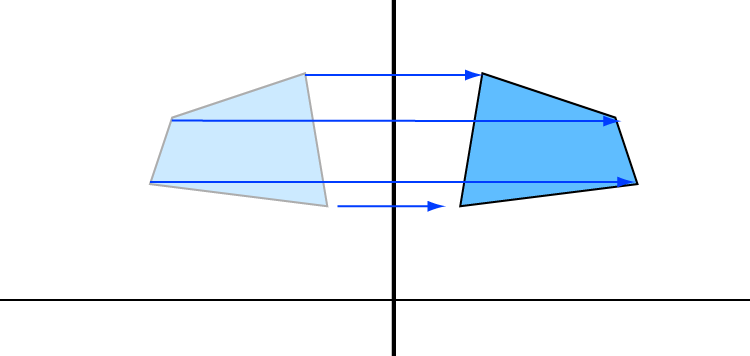

Flip: this is like looking at the object in the mirror. You can flip in different directions by putting the mirror in different places. The object is still the same size and shape after it has been flipped, just backwards somehow.

Transformations
The technical term for this transformation is reflection.

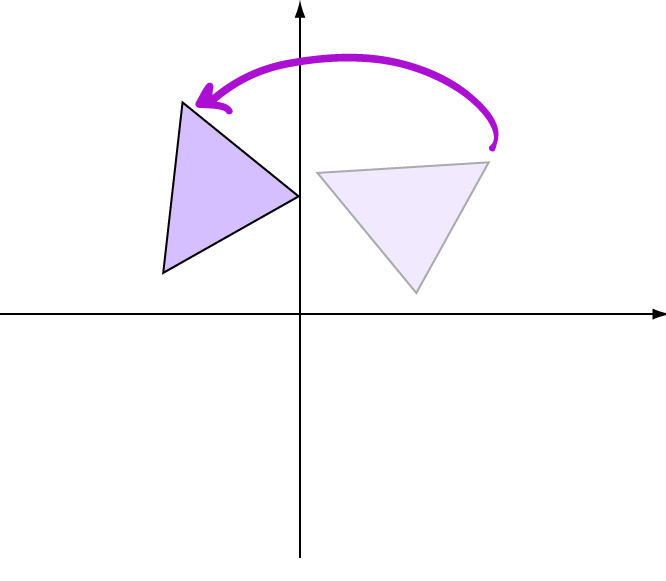

Turn: this is spinning the object. Pick a point either inside or outside the object and spin the object around that point. If the point is outside the object, it's like spinning a tennis ball around in a stocking. If the point is inside the object, it's like sticking a pin in the object and spinning it around that point like a wheel spins around its axle. The object is still the same size and shape after it has been turned.

Transformations
The technical term for this transformation is rotation.

After applying any of these three transformations, or any combination of them, the object still has the same size, area, angles, and side-lengths.

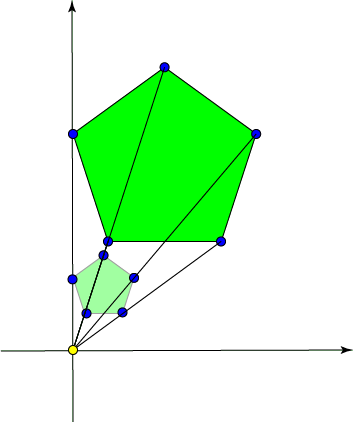

Enlargement (Blowing Things Up)

This transformation changes the size of objects. We use the term, "enlargement", to either mean making something bigger or making it smaller. The angles and the relative sizes of parts of the object (when compared to the rest of the object) remain the same. Some other words for this transformation are dilation, resizing, epxansion, contraction and compression.

Transformations

Similarity and Congruence

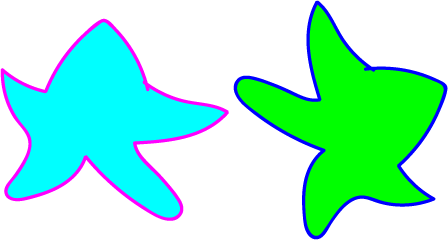

Two shapes are congruent if one can be turned into the other using only the reflection, rotation and translation transformations.

Transformations

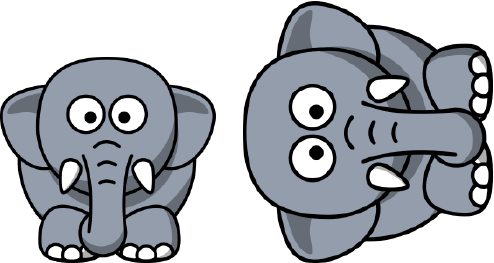

If enlargement is also needed to turn one shape into another, then the two shapes are called similar.

Transformations

Description

In these chapters you will learn about plane geometry topics such as

  • Area (Irregular polygons, plane shapes etc)
  • Perimeter
  • Conic sections (Circle, Ellipse, Hyperbola etc)
  • Polygons (Congruent, polygons, similar, triangles etc)
  • Transformations and symmetry (Reflection, symmetry, transformations etc)

etc

Even though these chapters are marked for Year 10 or higher students, several topics are for students in Year 8 or higher



Audience

Year 10 or higher, suitable for Year 8 + students as well.

Learning Objectives

Learn about Plane Geometry
