Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

Compass and straight edge constructions are of interest to mathematicians, not only in the field of geometry, but also in algebra. For thousands of years, beginning with the Ancient Babylonians, mathematicians were interested in the problem of "squaring the circle" (drawing a square with the same area as a circle) using a straight edge and compass. This problem is equivalent to finding the area of a circle. It turns out that this is impossible, but no-one managed to prove this until 1882!

However, it is possible to construct a perpendicular to a line segment at a point on the line segment using only a pair of compasses and a straight edge.

For this construction, you will need a straight edge (ruler - but you won't be measuring anything), pair of compasses, a pencil and paper. I have drawn the pictures using the robocompass app. It's fun to play with, and you can use it to do all sorts of geometric constructions. There's a little bit of coding to learn, but a list of instructions is provided. Once you've written your little program, you can get out the popcorn, sit back and watch the construction. Be warned that, when you are using it to draw arcs, the robocompass compass point may appear to be a little away from the centre, but the drawing is actually accurate.

The Construction

Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

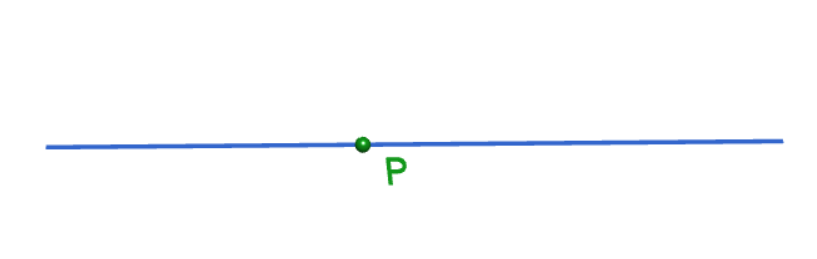

Step 1: Start out by drawing the line segment and a point \(P\) on the line segment at which you want to construct the perpendicular. Please don't be like Sam! Use a ruler to draw this.


Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

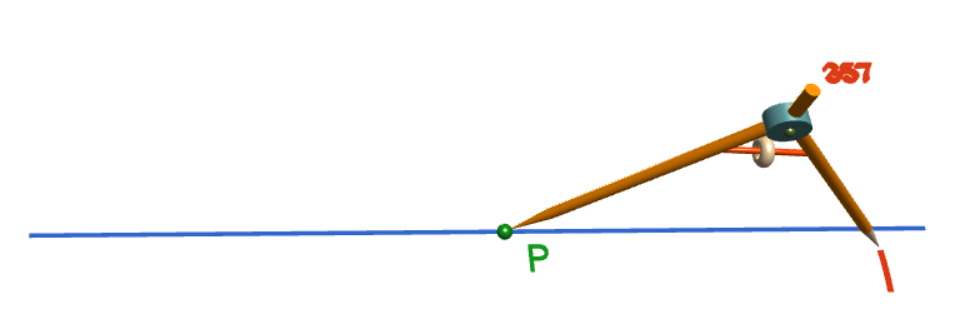

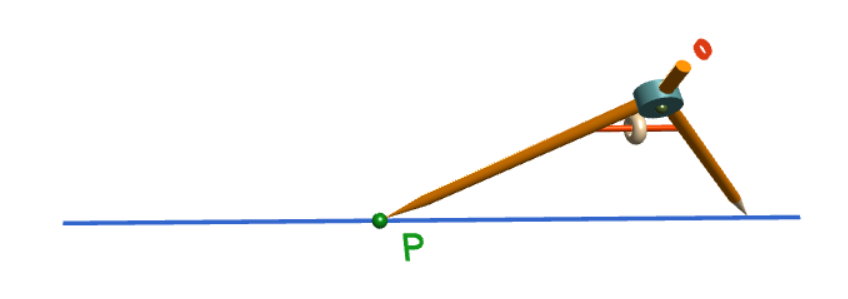

Step 2: Place the tip of your pair of compasses on point \(P\), and open them out to a medium-sized radius. You are going to draw two arcs of this radius, so make sure you keep it fixed. Draw an arc to the right of your point, cutting through your line segment. The picture shows the tip of the compass a little away from point \(P\). This is just a problem with the animation. The arc is actually centred at point \(P\), so make sure your compass tip is exactly on point \(P\).

Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

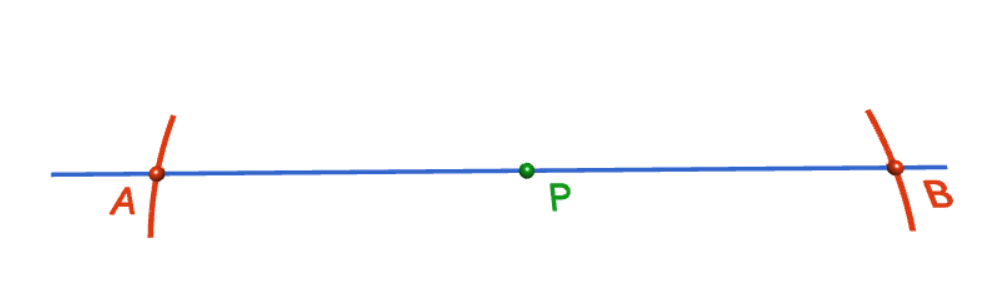

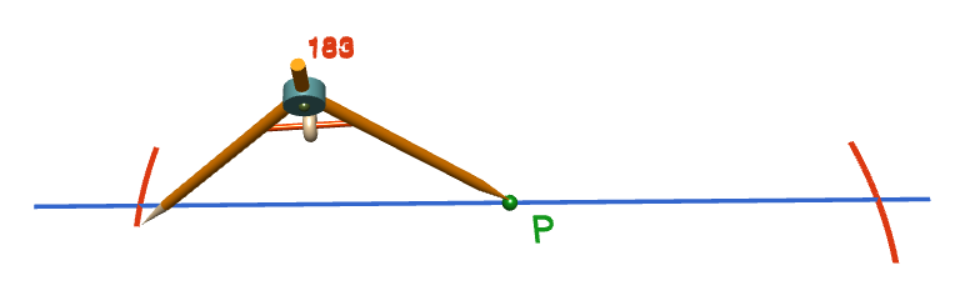

Step 3: Keeping your compasses at the same radius as in the preceding step, draw another arc, crossing the line segment, to the left of point \(P\). The picture shows the tip of the compass a little away from point \(P\). This is just a problem with the animation. The arc is actually centred at point \(P\), so make sure your compass tip is exactly on point \(P\). Mark the points where the arcs intersect the line segments \(A\) and \(B\). The picture on the right shows the completed arcs.

Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

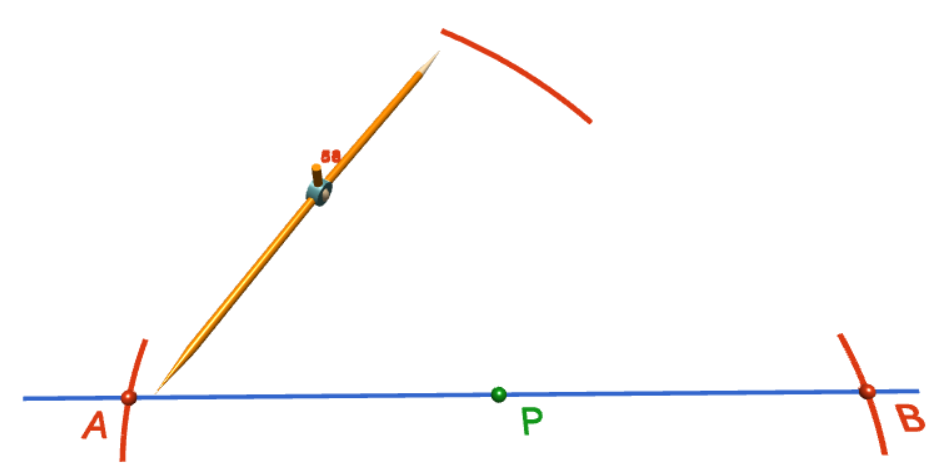

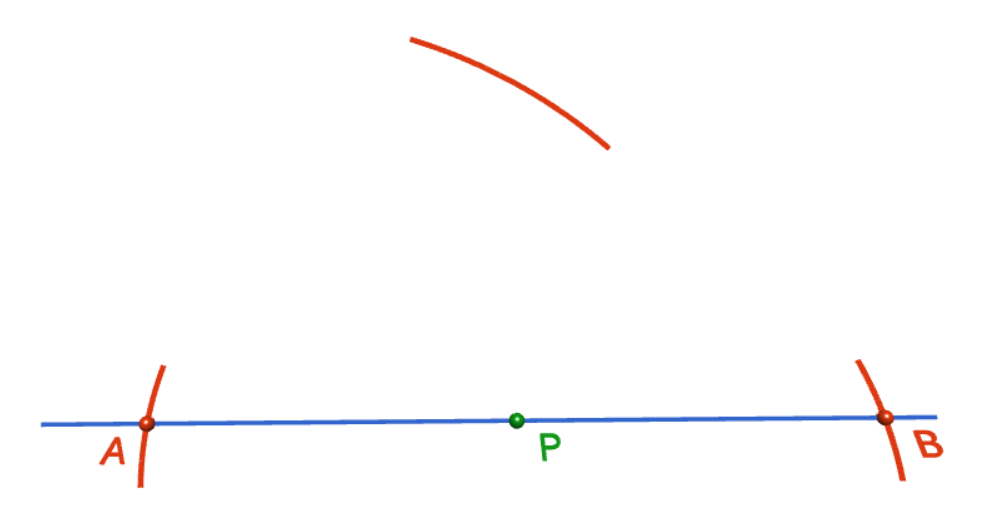

Step 4: Increase the radius of the compasses to almost double the radius used for steps 2 and 3. You are going to draw two arcs of this radius, so make sure you keep it fixed. Stick the tip of your compass in at point \(A\) and draw an arc directly above the point \(P\). The picture shows the tip of the compass a little away from point \(A\) (and the other end of the compass away from the place where the arc is drawn). This is just a problem with the animation. The arc is actually centred at point \(A\), so make sure your compass tip is exactly on point \(A\). The picture on the right shows the completed arc.

Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

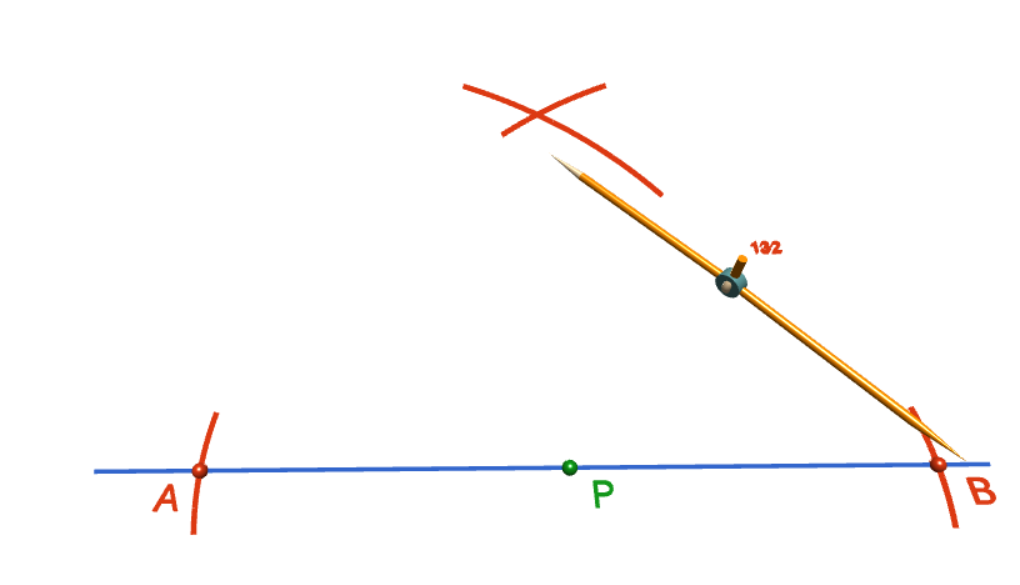

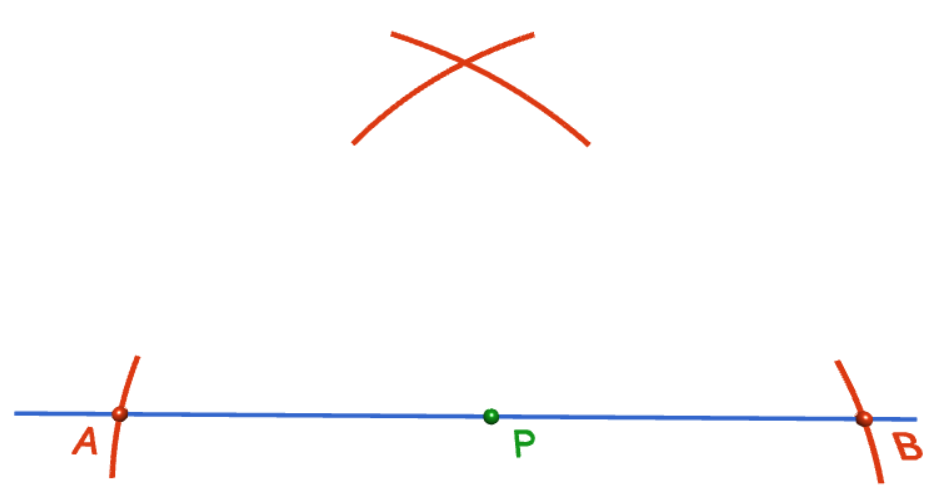

Step 5: Using the same radius as in step 4, stick the tip of your compasses in at point \(B\) and draw an arc directly above the point \(P\), intersecting the arc from step 4. The picture shows the tip of the compass a little away from point \(B\) (and the other end of the compass away from the place where the arc is drawn). This is just a problem with the animation. The arc is actually centred at point \(B\), so make sure your compass tip is exactly on point \(B\). The picture on the right shows the completed arc.

Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

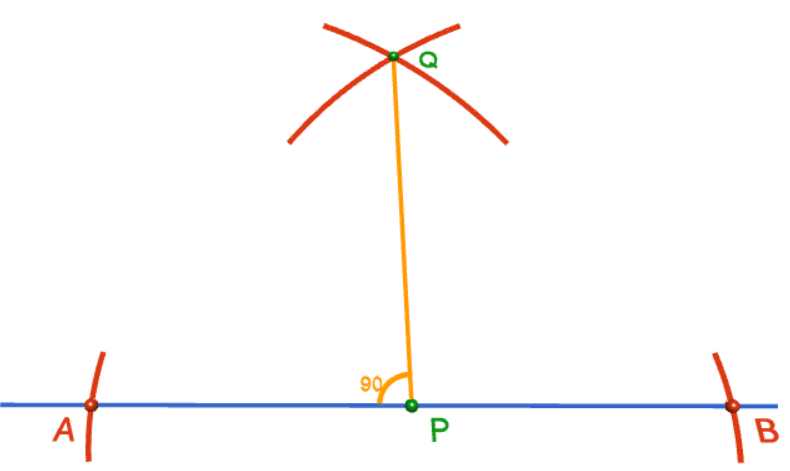

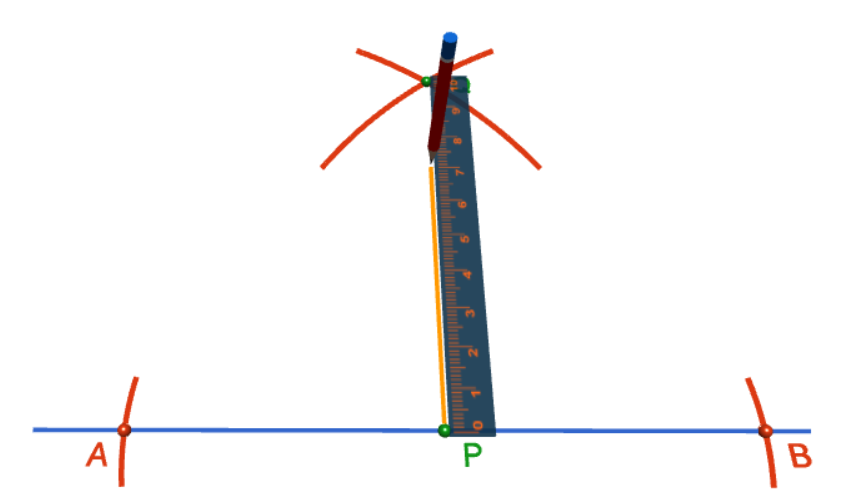

Step 6: Use a straight edge to draw a line from the point \(P\) up to the point where the two arcs cross, as shown in the picture on the left. This will be your perpendicular. The picture on the right shows the finished construction. It doesn't look "perpendicular", but that's just because of the angle of the drawing. You can check the angle with your protractor or a set square. Have fun doing the construction!

Constructing the Perpendicular to a Line Segment at a Point on the Line Segment

Description

This tutorial will expose you to Rulers and how to use them. We will also have a close look as set square and compass constructions. Your feedback is important to us, if you like any other topic covered under this tutorial, please do let us know.



Audience

Year 10 or higher

Learning Objectives

Ruler and compass constructions and more
