Quick introduction to Apache POI

In this part of the tutorial we will dive into getting to know how to work with spreadsheets, In an excel file, a page is called a Spreadsheet, A spreadsheet always has rows and columns and a referenced by their specific names.

Let's check how to create one.

Create a Spreadsheet

After creating workbook first, then next step is to create a sheet. Below code can be used to create spreadsheet

Workbook wb = new XSSFWorkbook();
Sheet sheet1 = wb.createSheet("Sheet1");
Sheet sheet2 = wb.createSheet("Sheet2");

There are a few things to note

1. A sheet name in Excel must not exceed 31 characters
2. A sheet name also must not contain any of the any of the these characters:
   0x0000, 0x0003, :, \,  *, ?, /, [, ]

Rows on Spreadsheet

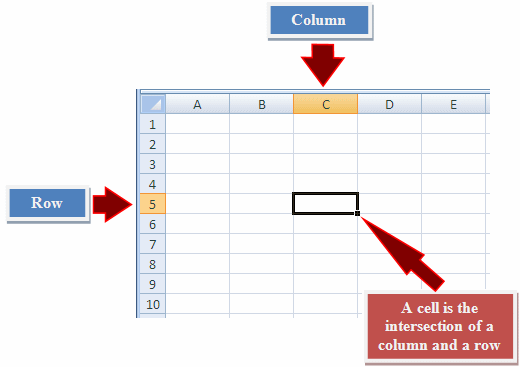

Spreadsheets have a grid layout. The columns and rows identified with specific names. The columns identified with alphabets and rows with numbers. An example is shown below

The following code snippet is used to create a row.

// Example 1 - Create a row in sheet 1. Rows are 0 based.

    Row row = sheet.createRow((short)0);

XSSFRow row = sheet1.createRow((short)1);

// Example 2 - Create a row in sheet 1. Rows are 0 based.

XSSFRow row = sheet2.createRow((short)1);

Adding data to spreadsheet

Ok! so we know now how to create a Workbook, a spreadsheet and a row. Let's put this all together and enter some data to our spreadsheet.

Here is some recent order demo data below

Let's get it going with our program below

package com.sc;

import org.apache.poi.xssf.usermodel.XSSFCell;
import org.apache.poi.xssf.usermodel.XSSFRow;
import org.apache.poi.xssf.usermodel.XSSFSheet;
import org.apache.poi.xssf.usermodel.XSSFWorkbook;

import java.io.File;
import java.io.FileOutputStream;
import java.util.Map;
import java.util.Set;
import java.util.TreeMap;

public class Main {

    public static void main(String[] args) {
        // create a new workbook
        XSSFWorkbook workbook = new XSSFWorkbook();
        //Create a new sheet
        XSSFSheet sheet = workbook.createSheet("Recent Orders");
        // row reference
        XSSFRow row;
        // data needs to  written (Object[])
        Map< String, Object[] > orders = new TreeMap<String, Object[]>();
        orders.put("1", new Object[] {
                "Region", "Rep", "Item", "Quantity_Sold"
        });
        orders.put("2", new Object[] {
                "East", "Yuv", "Pencil", "95"
        });
        orders.put("3", new Object[] {
                "Central", " Nimrit", "Binder" , "50"
        });
        orders.put("4", new Object[] {
                "Central", " Kamal", "Pencil" , "36"
        });
        Set kid = orders.keySet();
        int rowid = 0;
        for (String key: kid) {
            row = sheet.createRow(rowid++);
            Object[] objectArr = orders.get(key);
            int cell_id = 0;
            for (Object obj: objectArr) {
                XSSFCell cell = row.createCell(cell_id++);
                cell.setCellValue((String) obj);
            }
        }
        try {
            // write to workbook.xlsx
            FileOutputStream out = new FileOutputStream(new File("c:/poi/workbook.xlsx"));
            workbook.write(out);
            out.close();
            System.out.println("Spreadsheet successfully written");
        }catch (Exception e) {
            System.out.println(e.getMessage());
        }
    }
}

Save the above code into Main.java and then compile and run using command prompt as follow:

$javac Main.java

$java Main

After compiling the file there will be Excel file in C:\poi directory by file workbook.xlsx.

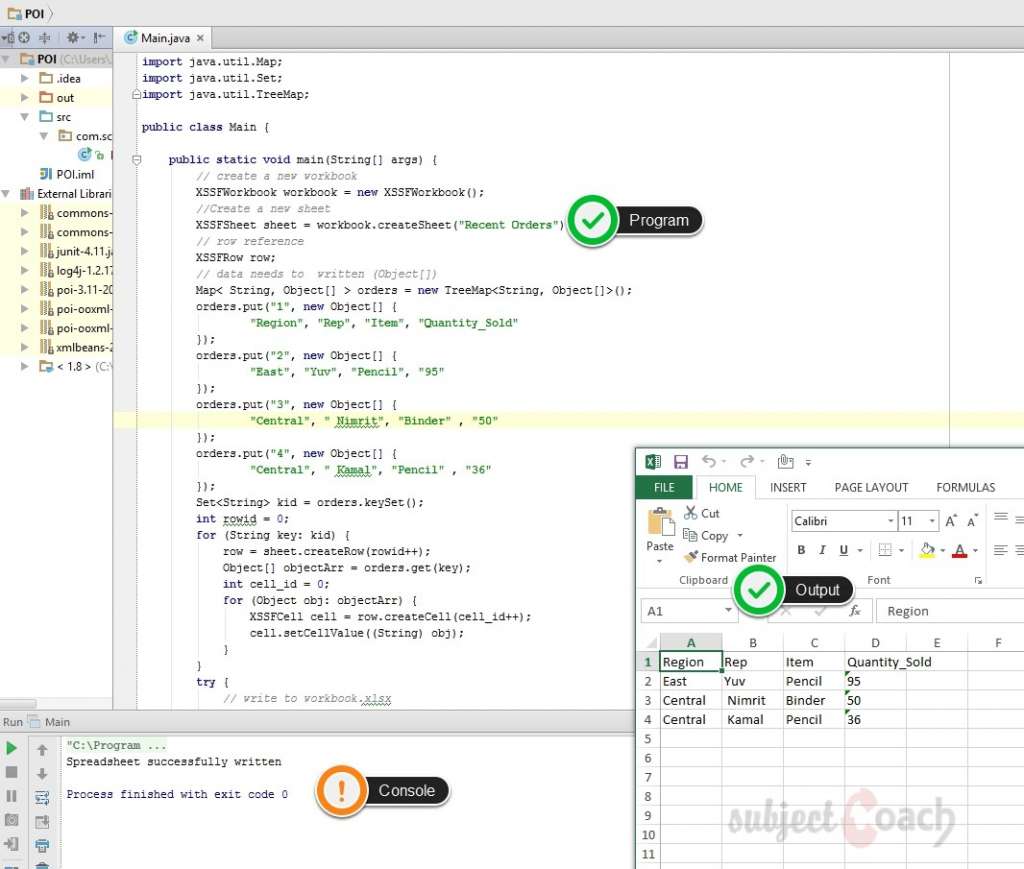

The Output:

Reading from Spreadsheet

Let us consider the above excel file named workbook.xslx as input, following code can be used to read data from the file.

package com.sc;

import org.apache.poi.ss.usermodel.Cell;
import org.apache.poi.ss.usermodel.Row;
import org.apache.poi.xssf.usermodel.XSSFRow;
import org.apache.poi.xssf.usermodel.XSSFSheet;
import org.apache.poi.xssf.usermodel.XSSFWorkbook;

import java.io.File;
import java.io.FileInputStream;
import java.util.Iterator;

public class ReadXlsx {
    static XSSFRow row;
    public static void main(String[] args) throws Exception    {
        FileInputStream inputStream = new FileInputStream(new File("c:/poi/workbook.xlsx"));
        XSSFWorkbook workbook = new XSSFWorkbook(inputStream);
        XSSFSheet spreadsheet = workbook.getSheetAt(0);
        Iterator rowIterator = spreadsheet.iterator();
        while (rowIterator.hasNext())
        {
            row = (XSSFRow) rowIterator.next();
            Iterator cellIterator = row.cellIterator();
            while ( cellIterator.hasNext())
            {
                Cell cell = cellIterator.next();
                switch (cell.getCellType())
                {
                    case Cell.CELL_TYPE_STRING:
                        System.out.print(
                                cell.getStringCellValue() + " \t\t " );
                        break;
                    case Cell.CELL_TYPE_NUMERIC:
                        System.out.print(cell.getNumericCellValue() + " \t\t " );
                        break;
                }
            }
            System.out.println();
        }
        inputStream.close();

    }
}

Save the above code into ReadXlsx.java and then compile and run using command prompt as follow:

$javac ReadXlsx.java

$java ReadXlsx

After compiling the file and executing we get the following output. We are using IntelliJ IDE but you get the idea

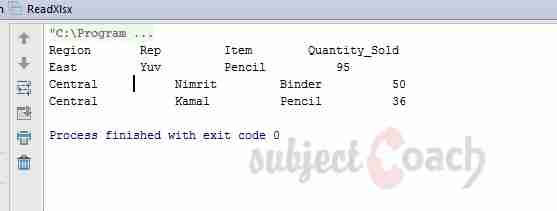

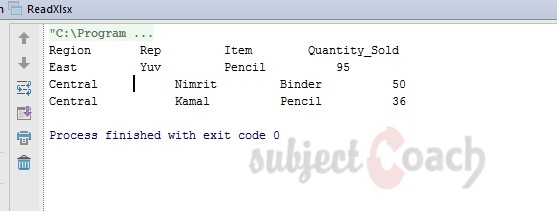

The output:
